Product Description

Mobile Jaw Crusher Small Efficient with Good Quality Low Costs

We manufacture Mobile Jaw Crusher Small Efficient with Good Quality Low Costs. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

The mobile jaw crusher is equipped with high-performance jaw crusher and vehicle-mounted feeder, and a high-strength vibrating screen can be added to complete the screening operation. The machine can be used alone or in combination with other secondary or even tertiary crushers to complete fine crushing or sand making operations. According to different crushing process requirements, it can be composed of “crushing then screening”or “screening then crushing” to meet the different needs of customers. Based on the new concept of “handle nearby” of materials, we provide customers with simple, efficient and low-cost project solution.

2. Specification

Model		MP600	MP750	MP900	MP1060	MP1200	MP1300
Transportation Size (mm)	Length	8600	9600	11097	13300	15800	9460
	Width	2520	2520	37559	2900	2900	2743
	Height	3770	3500	3500	4440	4500	3988
Transportation Weight (kg)	Weight	15240	22000	32270	57880	98000	25220
Jaw Crusher	Model	PE400×600	PE500×750	PE600×900	PE750×1060	PE900×1200	PE×300×1300
	Feed Opening (mm)	400×600	500×750	600×900	750×1060	900×1200	300×1300
	Discharge (mm)	40-100	50-100	65-180	80-180	95-225	20-90
	Capacity (m³/h)	10-35	25-60-	30-85	70-150	100-240	10-65
Vibrating Feeder	Model	GZD8030	GZD8030	GZD9638	GZD1149	GZD1352	GZD8030
	Hopper Capacity (m³)	3	4	7	10	10	3
	Hopper Width (mm)	2200	2500	3000	3000	3000	2200
Belt Conveyor Model		B500×6	B650×7	B800×8	B1000×11	B1200×13	B800×7

3. Flow Chart

Applicable materials: construction waste, granite, pebbles, limestone, cement concrete

Application fields: construction waste processing, concreteprocessing, concrete mixing station, building materials, metallurgy, chemical industry, cement, etc.

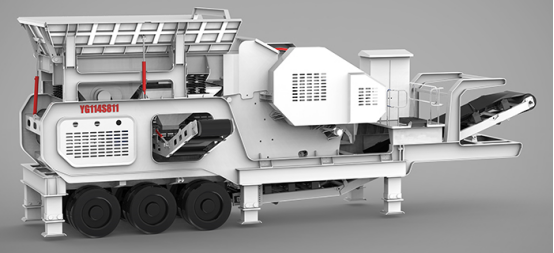

1. Vibrating feeder 2. Feeder Hopper 3. Jaw crusher 4. Belt conveyors

5. Control Panel 6. Chassis 7. Generator Set (Optional)

4. Feature

1. Flexiblemove. The mobile jaw crusheradopts separate mobile chassis that can move on the road or in the work area flexibly and enter the work mode quickly.

2. Compact and reasonable structure. The compact chassis and reasonable equipment layout greatly reduce the overall transport length.

3. High-efficiency jaw crusher with large capacity and high crushing ratiois adopted.

4. Perfect function. Thefunctions of jaw mobile crusher include feeding, conveying and crushing, and can complete all operations of the fixed production line.

5. Low energy consumption and environmental protection. The compact structure and reasonable layout make the mobile jaw crusher consume less energy; the dust cover can be added to the crusher and the belt conveyor, which greatly reduces the environmental pollution caused by dust spillage.

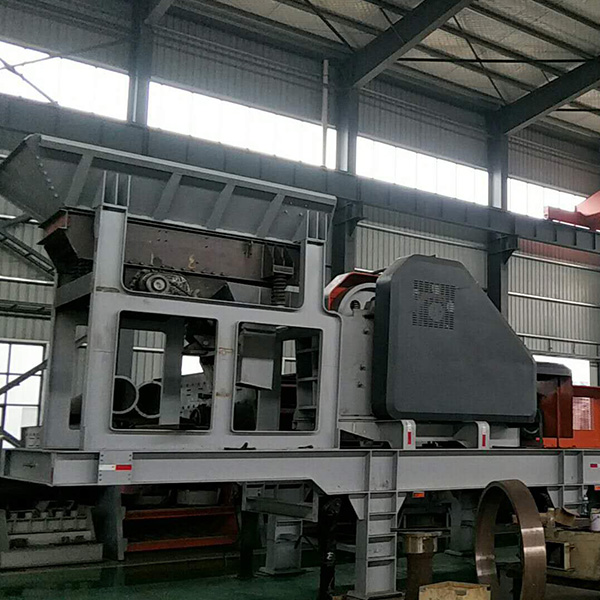

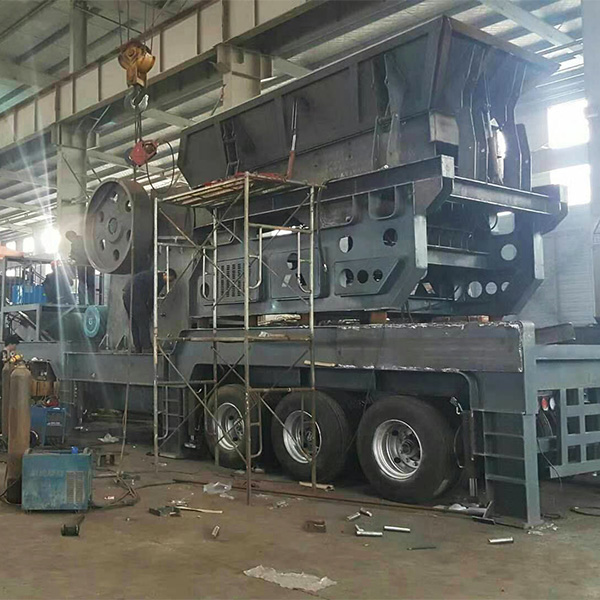

5. Pictures
