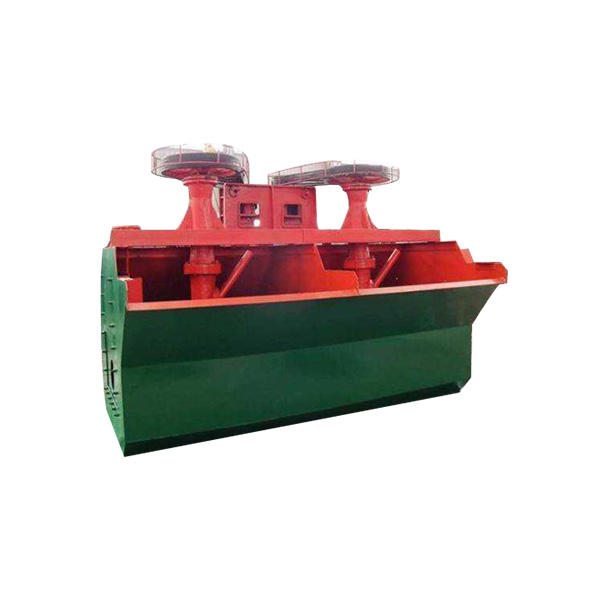

Flotation Machine

Cell Mining Pneumatic Machanical for Sulfide Gold Ore Silica Sand

We manufacture Flotation Machine Cell Mining Pneumatic Machanical for Sulfide Gold Ore Silica Sand. We devote ourselves to mining machinery many years, and our machines have been exported to South Asia, South America, Africa, Middle East and some other area. We expect be your partner in China.

1. Product Introduction

Our newly developed flotation machine is mainly used for roughing, concentration and reverse flotation of non-metallic minerals, non-ferrous metals and ferrous metals with advantages of large suction capacity, high processing capacity, low power consumption, large effective volume area and cost-effective. The machine can forms flotation circuit, and does not need any auxiliary equipment. Also, it has an automatic control device for the slurry surface which makes adjustment convenient and fast.

2. Features

1. The flotation machine is fully equipped with functions of air suction, slurry suction and flotation. It can be used independently without any auxiliary equipment.

2. Mechanical stirring makes simple operation and convenient adjustment.

3. Low rotate speedof impeller and long life of wearing parts. Large suction capacity and low energy consumption.

4.Reasonable structure. The double-blade impeller has good stirring action on the bottom coarse sand; the tank body is forward curved, which is good for the return of foam.

3. Structure and Work Principle

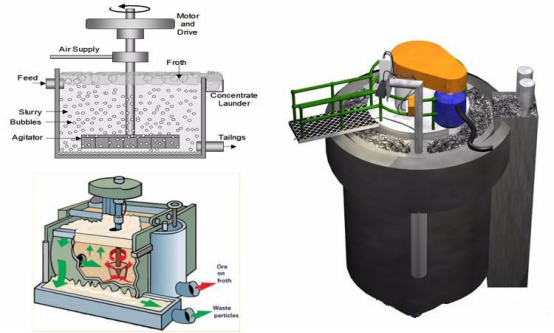

The machine is mainly composed of pulp tank, stirring device, air charging device, dischargedevice and electric motor etc.

Water and necessary chemicals are added in and mixed with the ground ores. The formed pulp enters into the pulp tank. The motor drives the impeller to rotate, generating centrifugal force to form a negative pressure, which makes air sucked into the pulp and formed deal of bubbles. Mineral particles adhere to the foam and float to the surface of the pulp forming a mineralized foam layer. Adjust the height of the shutterandcontrol the liquid level so that the useful foam to which the mineral particles are attached is scraped off by the scraper.

4. Technical Data

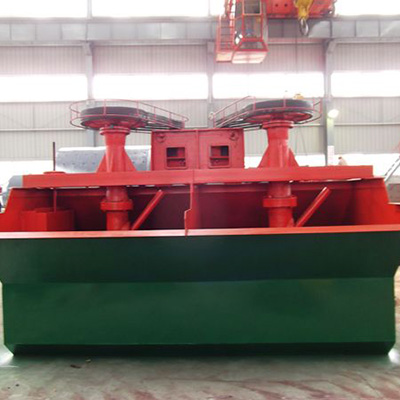

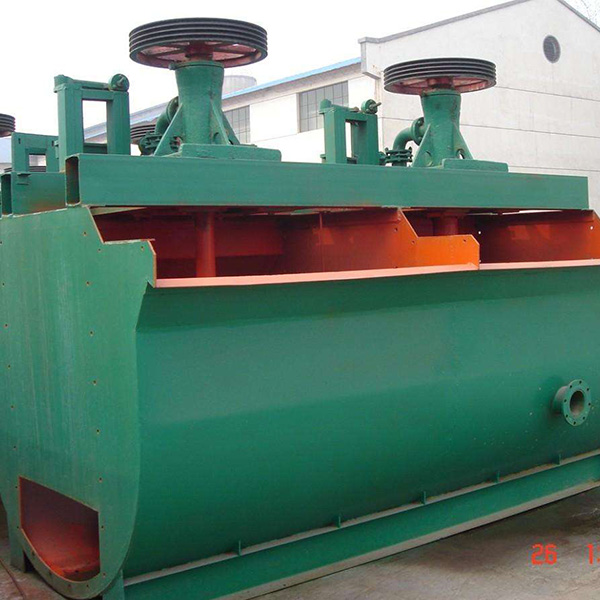

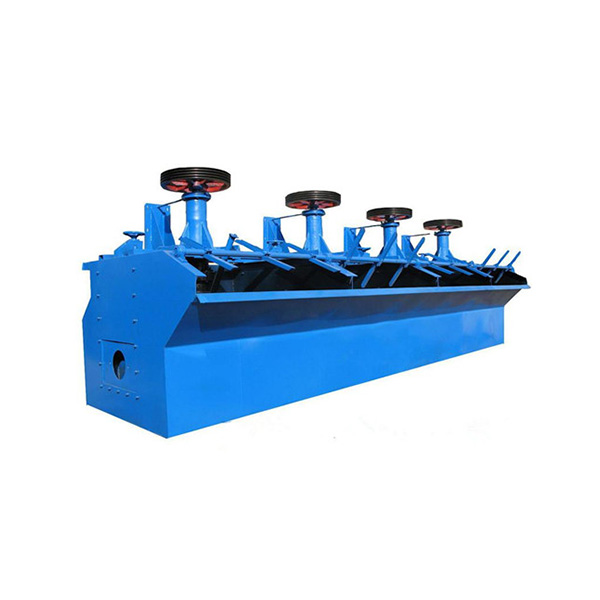

5. Pictures
